Traxxas 36034-8-R5 Bigfoot Classic 1/10

Traxxas 36034-8-R5 Bigfoot Classic 1/10

$229.99 USD
$229.99 USD $229.99 USD
Sale Sold out
Shipping calculated at checkout.
Traxxas

BIGFOOT CLASSIC 1/10

    BIGFOOT No.1 (36034-8) Specifications
    BIGFOOT® No. 1 (36034-8) SPECS
    Length: ­ 18.1 inches (459 mm)
    Front Track: ­ 12.75 inches (324 mm)
    Rear Track: ­ 12.75 inches (324 mm)
    Weight: ­ 65.3 ounces (1.85 kg)
    Height (overall): ­ 9.5 inches (241 mm)
    Wheelbase: ­ 10.6 inches (270 mm)
    Front Shock Length: ­ Long
    Rear Shock Length: ­ XX-long
    Front Tires: ­ Terra-Groove 2.2″
    Rear Tires: ­ Terra-Groove 2.2″
    Front Wheels: ­ Bright chrome dish (dual profile)
    Rear Wheels: ­ Bright chrome dish (dual profile)
    Electronic Speed Control: ­ XL-5™ electronic speed control
    Motor (electric): ­ Titan® 12T 550 (12-turn)
    Steering Servo: ­ 2056 high torque waterproof
    Transmitter: ­ TQ 2.4 GHz radio
    Receiver: ­ 6519 3-channel micro
    Gear Ratio (internal): ­ 2.72 (final drive: 12.34)
    Differential Type: ­ Planetary
    Gear Pitch: ­ 48 pitch
    Transmission: ­ Magnum 272™
    Steering: ­ Single point
    Chassis Type: ­ Modified tub
    Chassis Material: ­ Composite Nylon
    Top Speed: ­ 30+mph**
    Skill Level: ­ 1
    *Battery Tray Dimensions: ­ 164 mm x 46 mm x 26 mm
    Included Charger: ­ 4-amp USB-C fast charger
    Included Batteries: ­ Traxxas 7-cell NiMH battery with iD®
    Required Batteries: ­ 4 "AA" (transmitter)
    *Battery expansion kit available (3725X).
    **With 7-cell battery and included optional 19-tooth pinion gear
    BIGFOOT No.1 (36034-8) Specifications
    XL-5™ (WATERPROOF) ESC SPECIFICATIONS
    Input voltage: ­ 7.2 - 8.4 V (NiMH), 7.4 V (LiPo)
    Case Size: ­ 31 mm x 55 mm x 15.5 mm
    Weight: ­ 2.44 ounces
    Motor Limit: ­ 15-turns** (540 Size)
    12-turns** (550 Size)
    On Resistance Forward: ­ 0.007 ohms
    On Resistance Reverse: ­ 0.014 ohms
    BEC Voltage: ­ 6.0 volts
    BEC Current: ­ 1 amp
    Power Wire: ­ 14 gauge / 5 inches
    Input Harness Wire: ­ 26 gauge / 9 inches
    PWM Frequency: ­ 1600 Hz
    Low Voltage Detection (LVD): ­ 2-stage indicators, switchable (on or off)
    Thermal Protection: ­ Thermal shutdown
    Profile selection: ­ Sport Mode:
        100% FWD, 100% brakes, 100% REV
    Race Mode:
        100% FWD, 100% brakes, no REV
    Training Mode:*
        50% FWD, 100% brakes, 50% REV
    Single-button setup: ­ Traxxas EZ-Set®
    For full details, click here ­ *Patented **Properly Geared
    BIGFOOT No.1 (36034-8) Top Chassis View

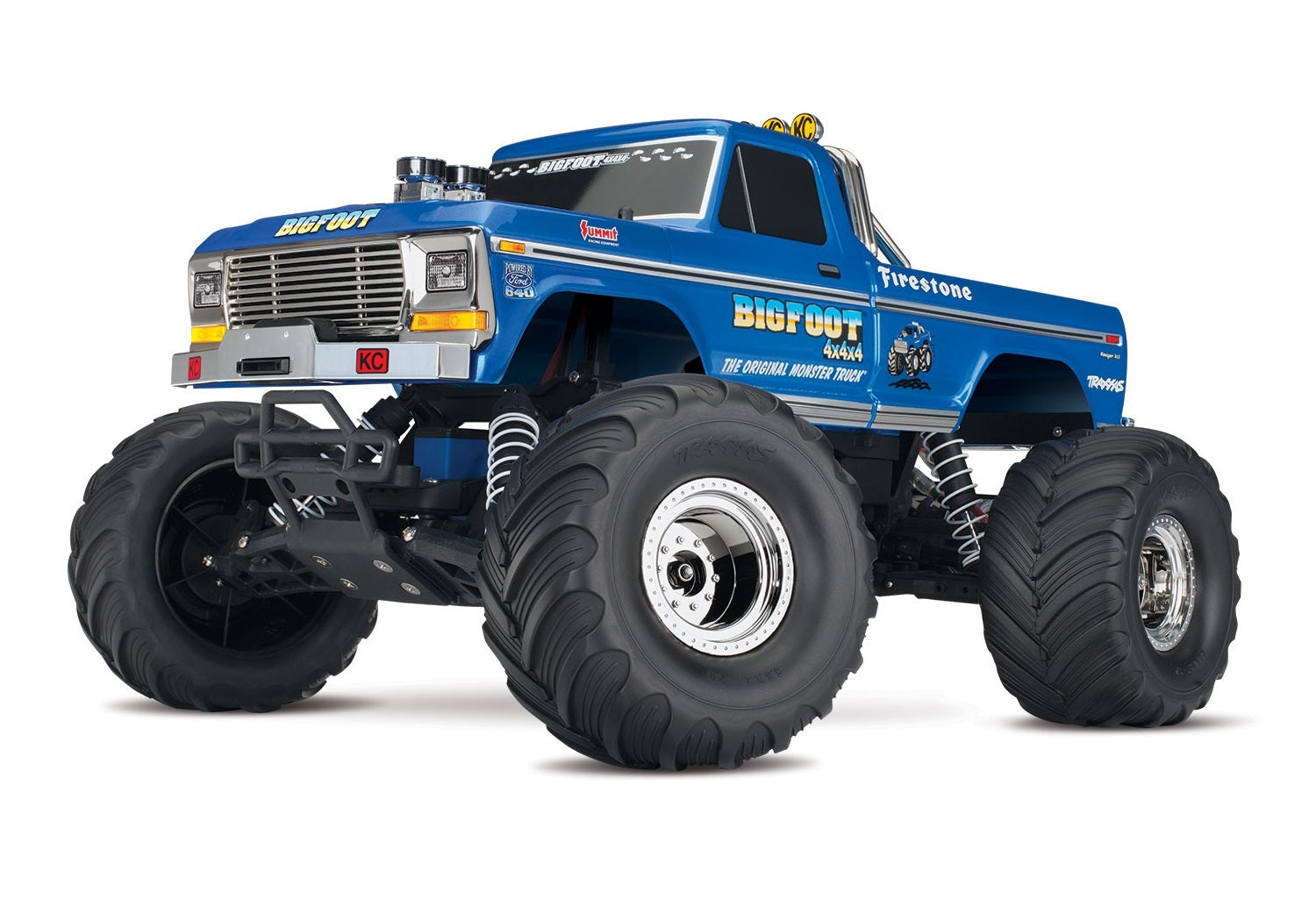

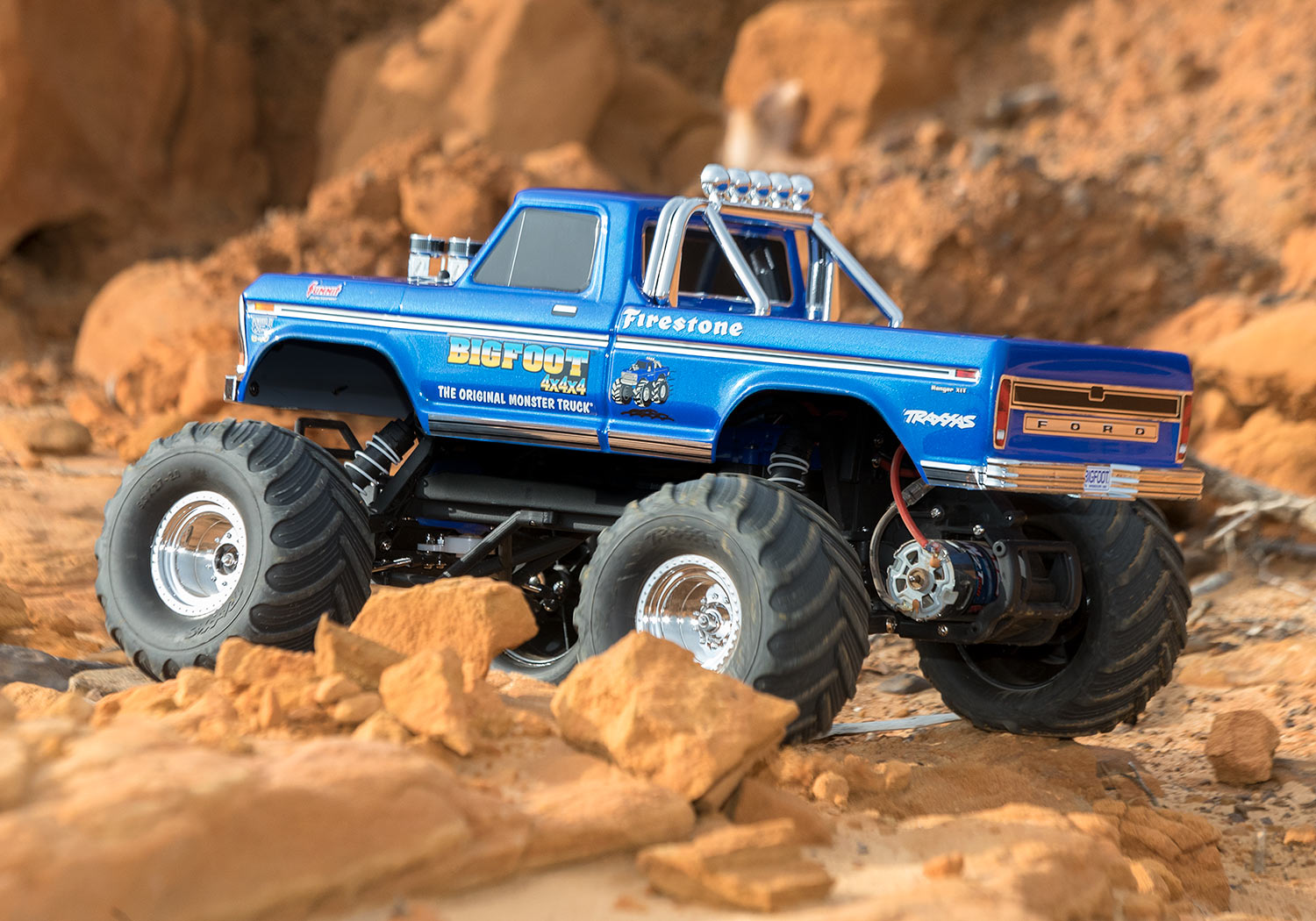

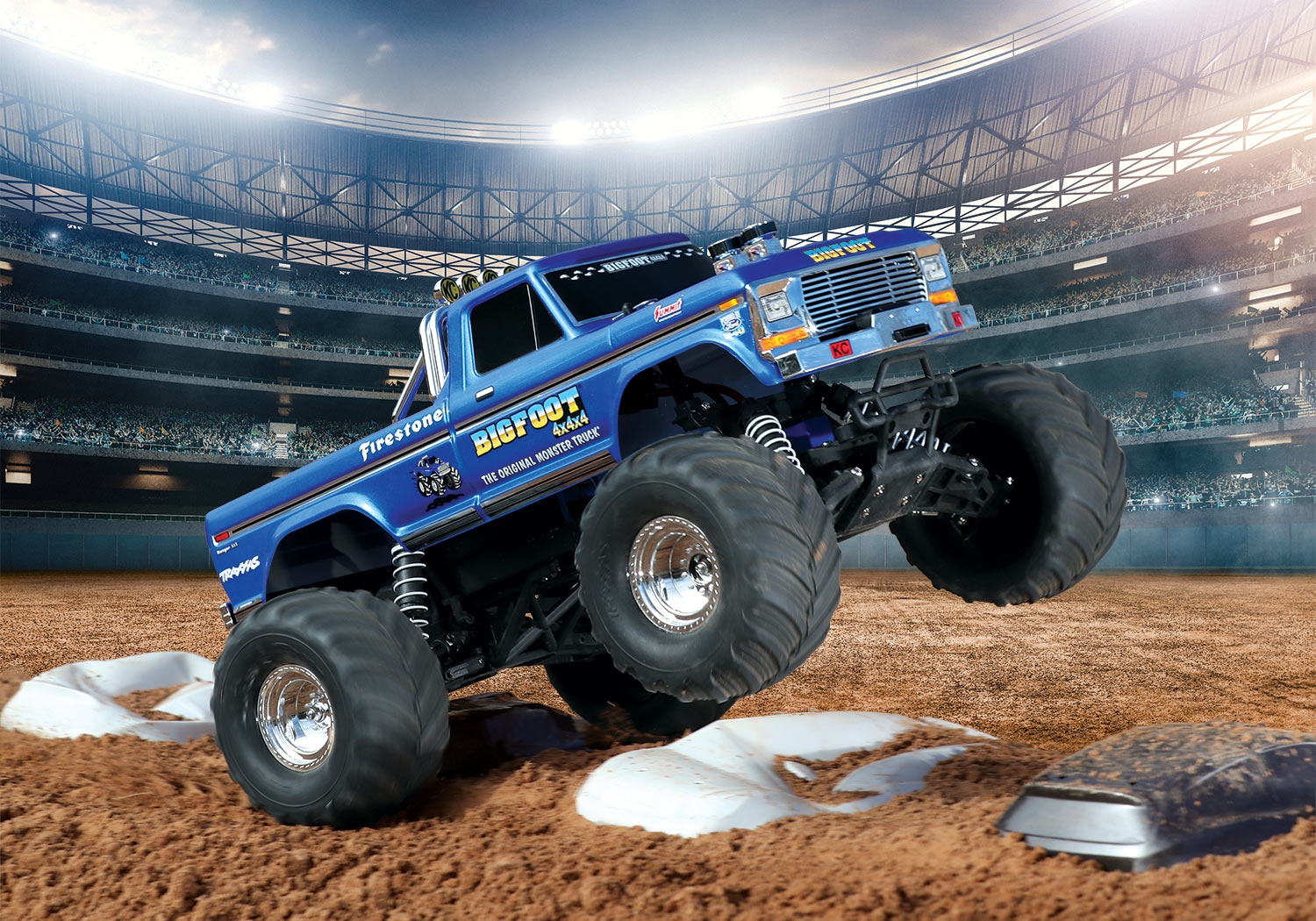

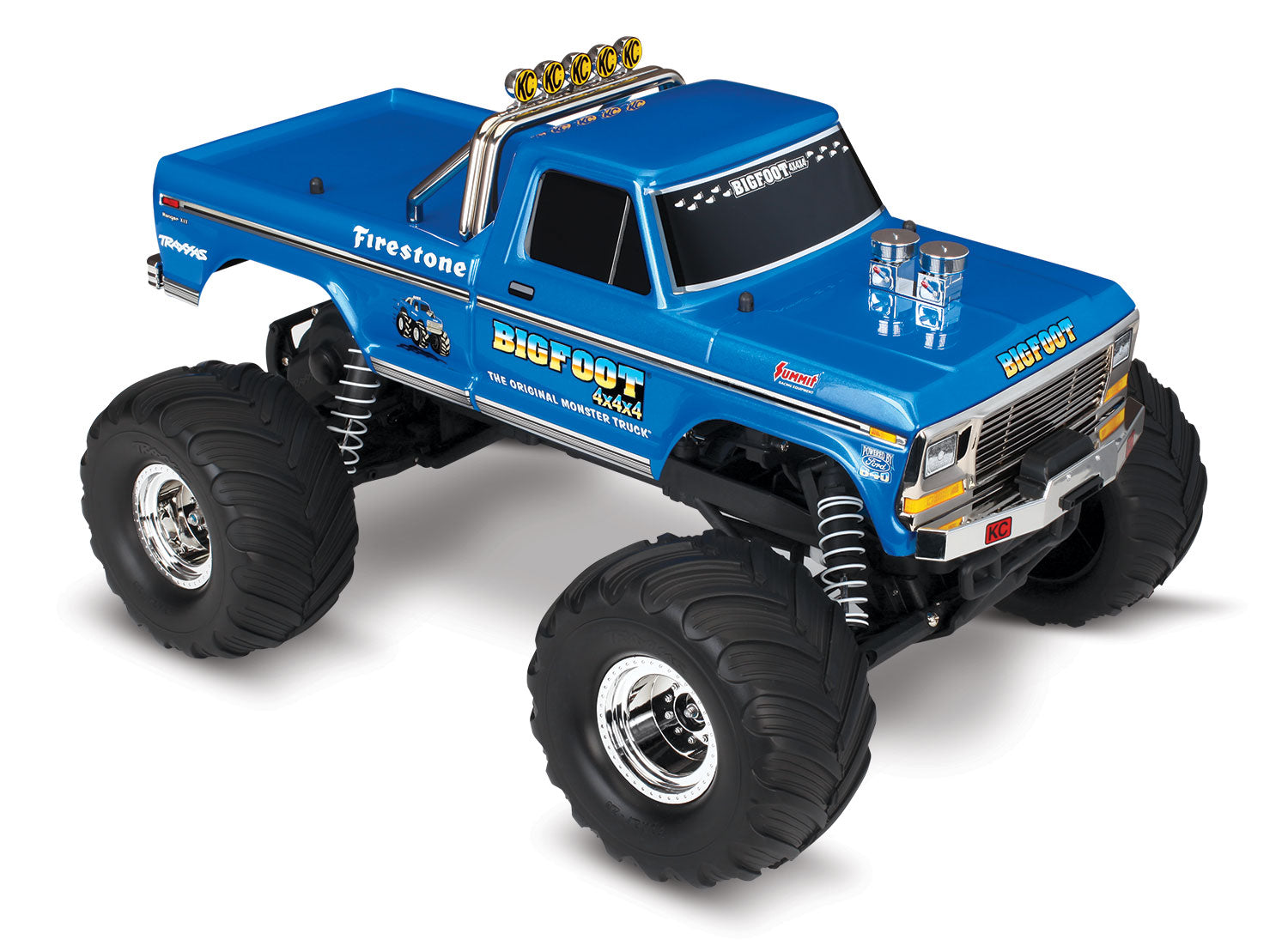

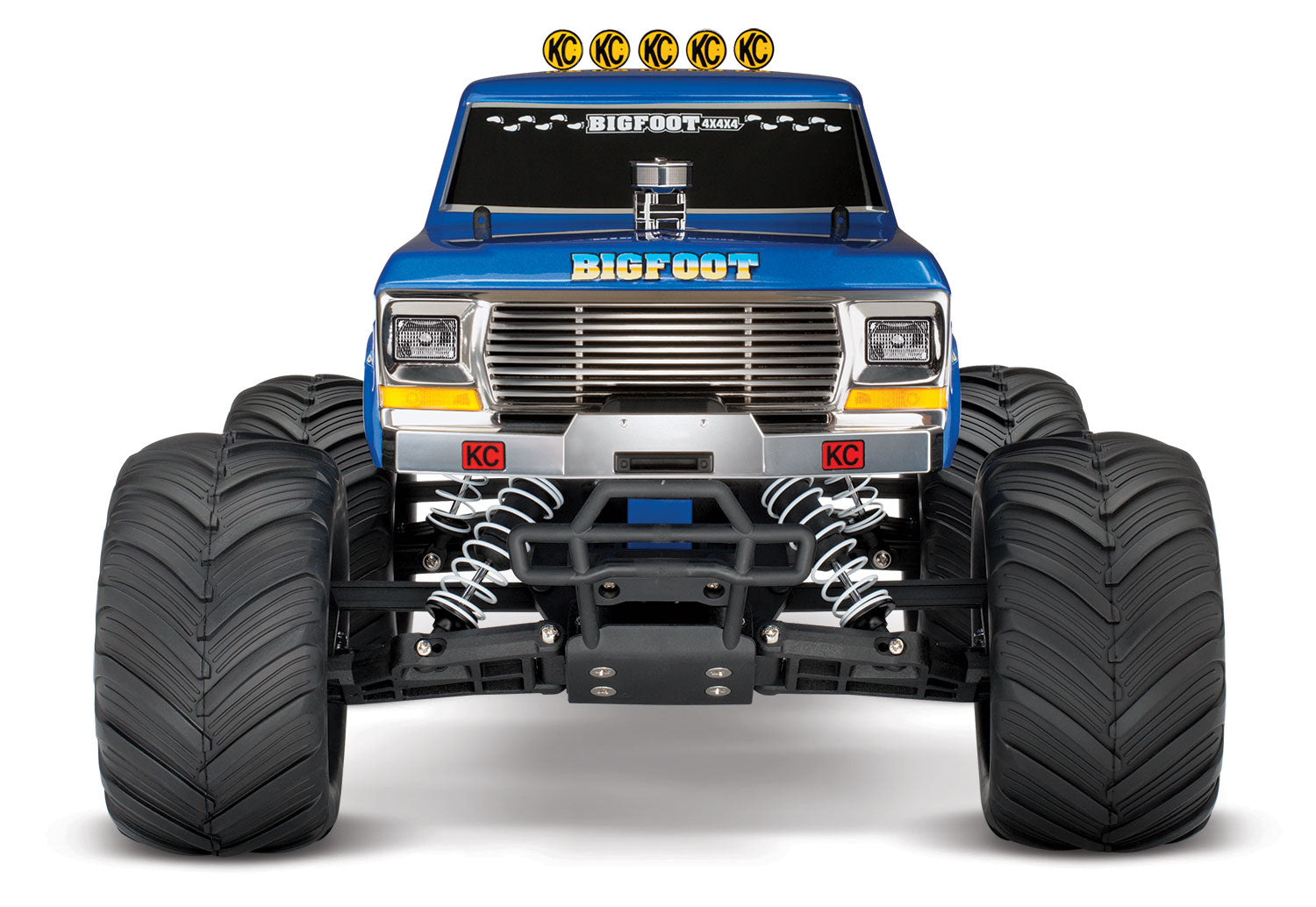

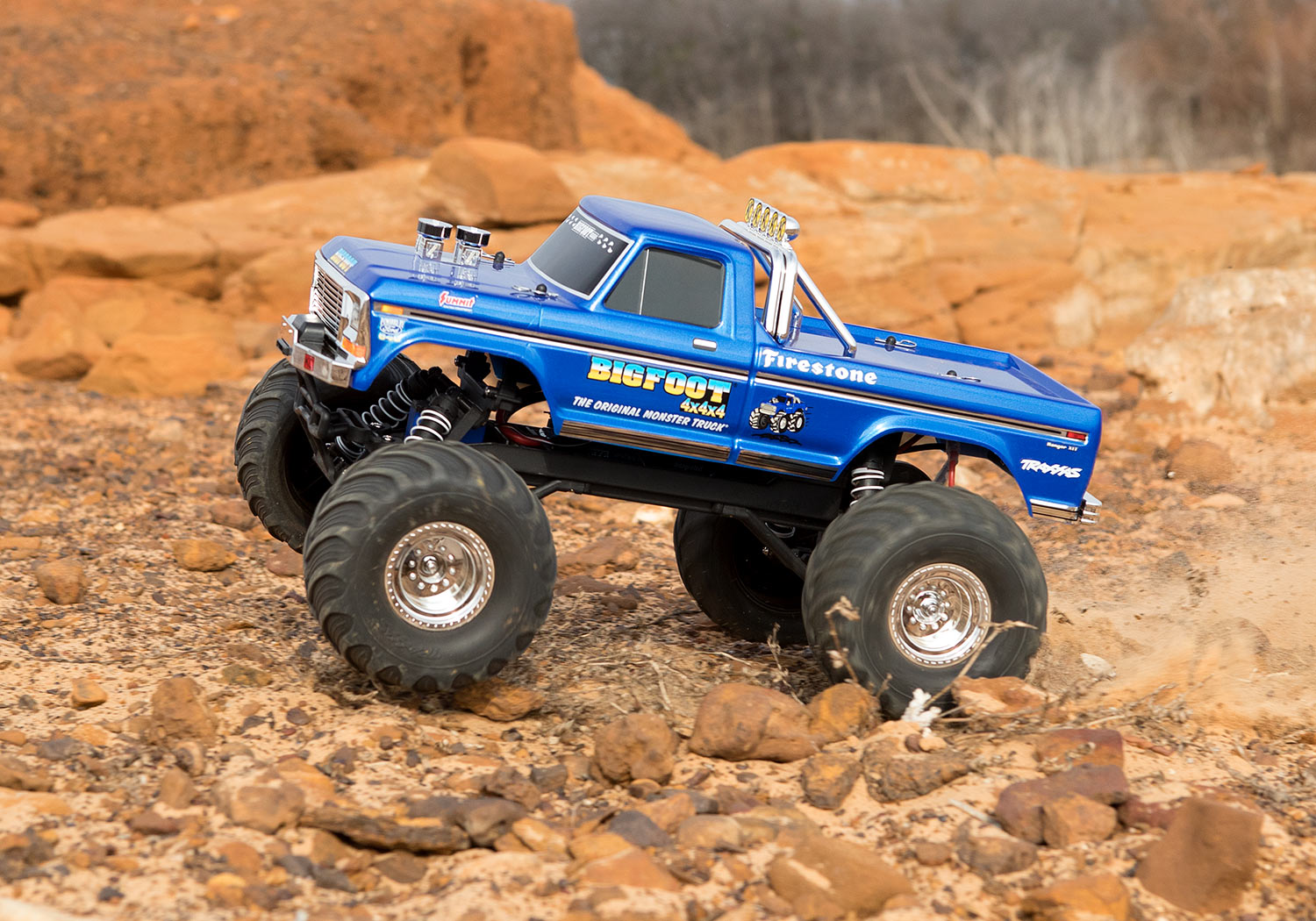

    MODEL 36034-8: BIGFOOT® No. 1 The Original Monster Truck, 1/10 Scale, fully-assembled,
    waterproof, Ready-To-Race®, with TQ™ 2.4GHz radio system, XL-5 electronic speed control,
    4-amp USB-C fast charger, and ProGraphix® painted body.

    * With 7-cell battery and included optional 19-tooth pinion gear.



    Officially Licensed Ford Logo
    Ford Motor Company Trademarks and Trade Dress used under license to Traxxas.

    “BIGFOOT”® and “The Original Monster Truck”® are registered trademarks of BIGFOOT 4X4, Inc. FIRESTONE and the FIRESTONE logo are trademarks of Bridgestone Brands, LLC and Bridgestone Licensing Services, Inc. ©2017 BIGFOOT 4X4, Inc., 2286 Rose Lane, Pacific, MO 63069 USA Bigfoot4x4.com. All rights reserved.
